Compact exhaust systems

Mobile and fixed compact filters

HERR Industry System offers a comprehensive protfolio of efficient extraction solutions for single and multiple workplaces. Depending on the task with mechanical, electrostatic or cartrige filter.

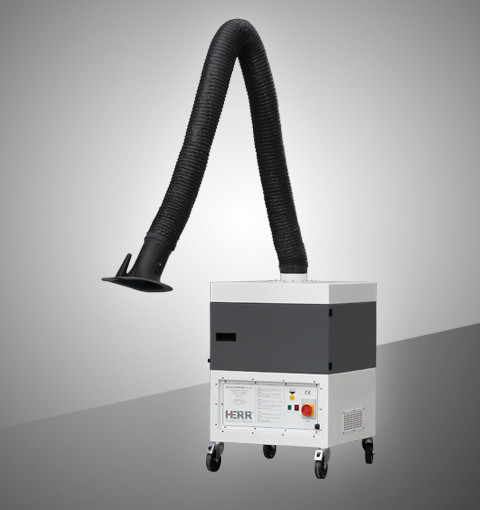

  • Mechanical exhaust system, mobile, 1 arm

    The industrial all-round device

    Application

    • versatile all-rounder
    • for the most common extraction tasks in the welding business
    • Disposable filter: no filter cleaning required

    Technical specifications

    • Volume rate: 2,000 m³/h
    • Flow rate (arm): 1,200 m³/h
    • Motor power: 1.1 kW
    • Power supply: 380 – 400 V/50 Hz or 60 Hz (optional)
    • Filter effectivity: ≥ 99.9 %
    • Noise level: < 68 dB (A)
    • Dimensions: 700 x 700 x 1,115 mm
    • Weight: 139 kg
    • Arm length: 2 m or 3 m

    Scope delivery

    • complete machine with pre-filter, main filter and ultra-fine filter
    • incl. extraction arm and flared hood
    • individually adaptable by numerous accessories
    Details

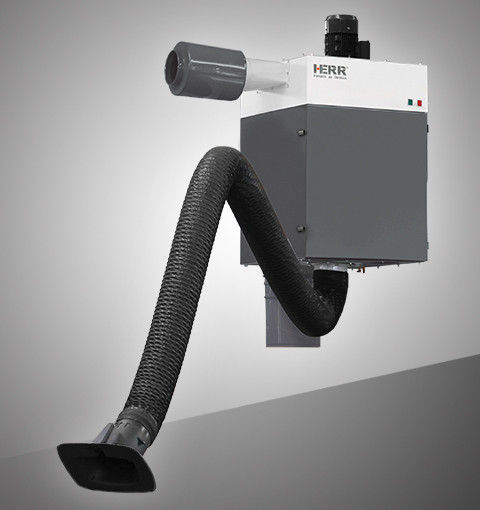

  • Cartridge exhaust system King Tiger, fixed, 1 arm

    With automatic cleaning by HiRoto® H – nozzle

    Application

    • for medium and heavy load jobs
    • used for the most common exhausting tasks, 24-hour operation
    • automatic filter cleaning

    Technical specifications

    • Volume rate: 2,000 m³/h
    • Flow rate (arm): 1,200 m³/h
    • Motor power: 1.5 kW
    • Power supply: 380 – 400 V/50 Hz or 60 Hz (optional)
    • Filter effectivity: ≥ 99,9 %
    • Noise level: < 68 dB (A)
    • Dimensions: 700 x 700 x 1,285 mm
    • Weight: 150 kg
    • Arm length: 8 – 11 m (with boom)

    Scope of delivery

    • complete machine with HISTec® cartridge filter
    • incl. 1 extraction arm and flared hood
    • individually adaptable by numerous accessories
    Details

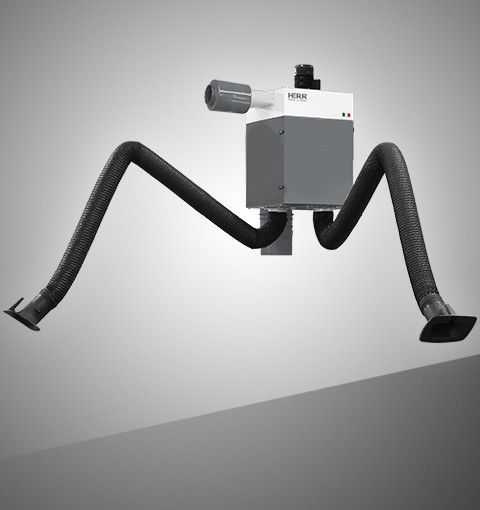

  • Cartridge exhaust system King Tiger, fixed, 2 arms

    With automatic cleaning by HiRoto® H – nozzle

    Application

    • for medium and heavy load jobs
    • used for the most common exhausting tasks, 24-hour operation
    • automatic filter cleaning

    Technical specifications

    • Volume rate: 3,000 m³/h
    • Flow rate (arm): 2 x 1,000 m³/h
    • Motor power: 2.2 kW
    • Power supply: 380 – 400 V/50 Hz or 60 Hz (optional)
    • Filter effectivity: ≥ 99.9 %
    • Noise level: < 72 dB(A)
    • Dimensions: 700 x 700 x 1,285 mm
    • Weight: 155 kg
    • Arm length: 8 – 11 m (with boom)

    Scope of delivery

    • complete machine with HISTec®-cartridge filter
    • incl. 2 extraction arms and flared hoods
    • individually adaptable by numerous accessories
    Details
