High Vacuum exhaust systems

Exhaustion at source

Besides workshop leaning and exhaustion directly at the workplace HERR Industry System also offers high vacuum systems, with which the smoke is extracted directly at the source.

Classic applications are torch extraction for manual welding, exhausting directly inside the helmet, at grinding workstations directly on or near the toll, and much more.

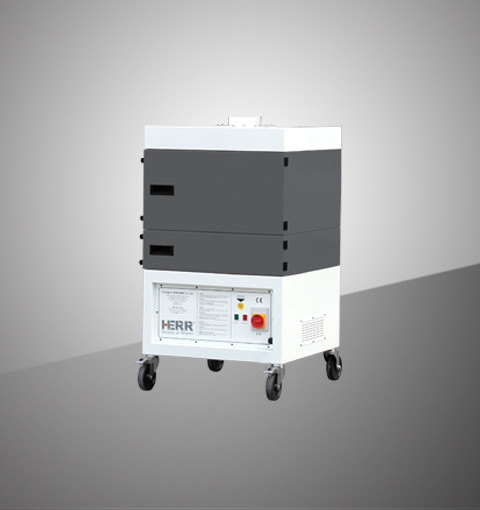

  • Mobile solder fume filter system

    Applications

    • suitable for all soldering applications
    • Board and printed circuit board production
    • up to 10 work places

    Technical specifications 1.1 kW

    • Volume rate: 2,000 m³/h
    • Motor power: 1.1 kW
    • Power supply: 380 – 400 V/50 Hz
    • Filter effectivity: ≥ 99.9 %
    • Noise level: < 68 dB (A)
    • Dimmensions: 700 x 700 x 1,115 mm
    • Weight: 161 kg

    Technical specifications 1.5 kW

    • Volume rate: 3,000 m³/h
    • Motor power: 1.5 kW
    • Power supply: 380 – 400 V/50 Hz
    • Filter effectivity: ≥ 99.9 %
    • Noise level: < 72 dB (A)
    • Dimmensions: 700 x 700 x 1,115 mm
    • Weight: 171 kg
    Details

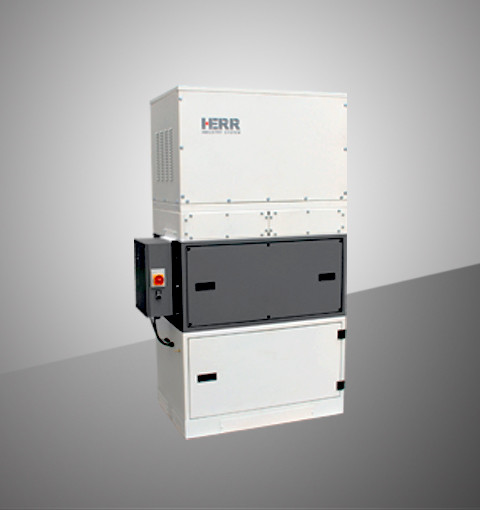

  • High vacuum exhaust system WOLF (central)

    Application

    • Direct extraction of welding and grinding dusts
    • up to 20 connectors for suction hoses
    • powerful and versatile

    Technical specifications

    • Filter efficiency: ≥ 99.9 %
    • Motor power: 13 – 75 kW (acc. to local needs)
    • Extraction volume: ≥ 1,000 m3/h
    • Dimensions: 1,696 x 700 x 2,130 mm

    Scope of delivery

    • Complete machine incl. HISTec® cartridge filter
    • Power cable
