Oil mist filter systems

Mechanical and electrostatic filtration of coolant and oil mist

Oil mist filter from HERR Industry System will not only help you to achieve the regulatory requirements, but to exceed them. An oil mist filter from HERR Industry System effectively protects the health of your employees in cost-efficient way.

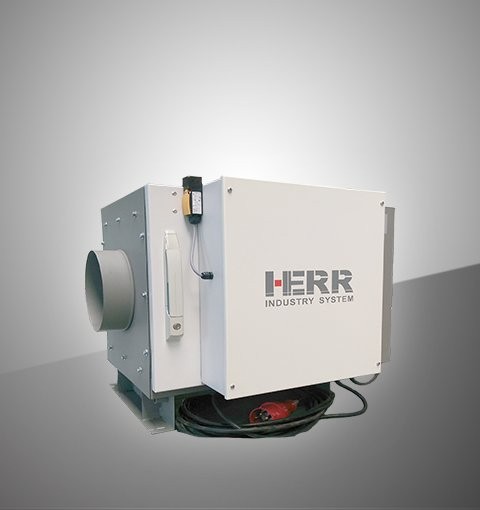

  • HOFE – Mechanical oil mist filtration

    Suction device for oil mists with electrostatic filter HERR Industry System oil mist filters focus on removing oils and contaminants from the air in the work place environment to protect the health of employees. HERR Industry System oil mist filter systems are divided into two classes, mechanical and electrostatic filtration systems. These two types are best way to deal with water-based or oil-based exhausts. For exhausts of varying oil content or composition, selecting the correct filters is important. Mechanical and electrostatic filters are suited to different concentrations and conditions of oil mist. HERR Industry System oil mist filter systems have modular designs that allow for rapid expansion, while the controlling costs at a minimum.

    Technical specifications HOFE2000

    • Extraction volume: 2,000 m3/h
    • Motor power: 0.75 kW
    • Power supply: 380 – 400 V/50 Hz
    • Filter effectivity: ≥ 95 %
    • Noise level: < 68 dB (A)
    • Dimensions: 1,059 x 645 x 700 mm
    • Weight: 105 kg

    Technical specifications HOFE5000

    • Extraction volume: 5,000 m3/h
    • Motor power: 1.5 kW
    • Power supply:  380 – 400 V/50 Hz
    • Filter effectivity: ≥ 99 %
    • Noise level: < 68 dB (A)
    • Dimensions: 1,075 x 1,100 x 700 mm
    • Weight: 180 kg
    Details

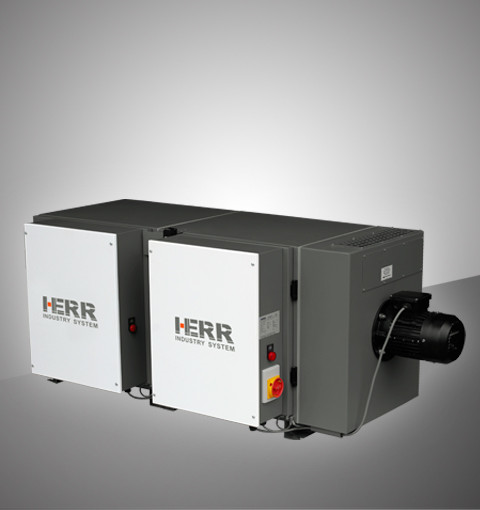

  • HOFE Double – Mechanical oil mist filtration

    Suction device for oil mists with 2 electrostatic filters HERR Industry System oil mist filters focus on removing oils and contaminants from the air in the work place environment to protect the health of employees. HERR Industry System oil mist filter systems are divided into two classes, mechanical and electrostatic filtration systems. These two types are best way to deal with water-based or oil-based exhausts. For exhausts of varying oil content or composition, selecting the correct filters is important. Mechanical and electrostatic filters are suited to different concentrations and conditions of oil mist. HERR Industry System oil mist filter systems have modular designs that allow for rapid expansion, while the controlling costs at a minimum.

    Technical specifications HOFE2000D

    • Extraction volume: 2,000 m3/h
    • Motor power: 0.75 kW
    • Power supply: 380 – 400 V/50 Hz
    • Filter effectivity: ≥ 95 %
    • Noise level: < 68 dB (A)
    • Dimensions: 1,624 x 652 x 682 mm
    • Weight: 175 kg

    Technical specifications HOFE5000D

    • Extraction volume: 5,000 m3/h
    • Motor power: 1.5 kW
    • Power supply:  380 – 400 V/50 Hz
    • Filter effectivity: ≥ 95 %
    • Noise level: < 68 dB (A)
    • Dimensions: 1.624 x 1.100 x 700 mm
    • Weight: 285 kg
    Details

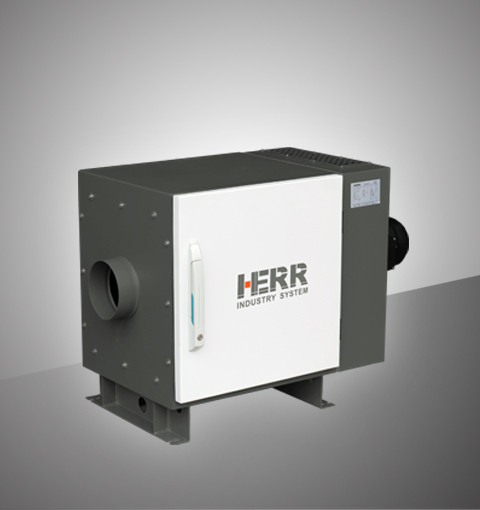

  • HOFM – Mechanical oil mist filtration

    Suction device for oil mists with mechanical filter HERR Industry System oil mist filters focus on removing oils and contaminants from the air in the work place environment to protect the health of employees. HERR Industry System oil mist filter systems are divided into two classes, mechanical and electrostatic filtration systems. These two types are best way to deal with water-based or oil-based exhausts. For exhausts of varying oil content or composition, selecting the correct filters is important. Mechanical and electrostatic filters are suited to different concentrations and conditions of oil mist. HERR Industry System oil mist filter systems have modular designs that allow for rapid expansion, while the controlling costs at a minimum.

    Technical specifications HOFM1000

    • Extraction volume: 1,700 m3/h
    • Motor power: 0.75 kW
    • Power supply: 230/400 V/50 Hz
    • Filter effectivity: ≥ 99 %
    • Noise level: < 68 dB (A)
    • Dimensions: 1,059 x 505 x 682 mm
    • Weight: 75 kg

    Technical specifications HOFM2000

    • Extraction volume: 2,200 m3/h
    • Motor power: 1.5 kW
    • Power supply: 230/400 V/50 Hz
    • Filter effectivity: ≥ 99 %
    • Noise level: < 68 dB (A)
    • Dimensions: 1,010 x 655 x 832 mm
    • Weight: 95 kg
    Details

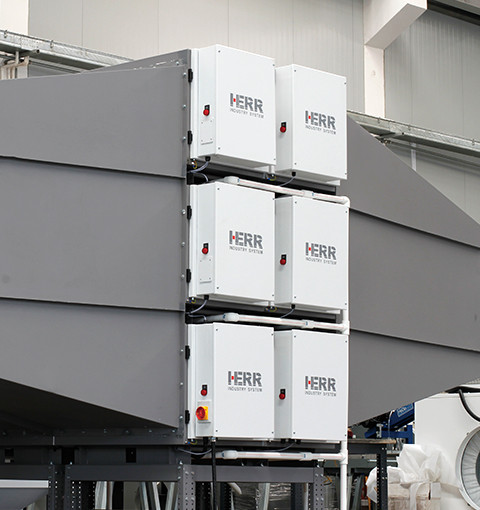

  • Central oil mist extracting system

    working for production lines and in composite machining centers HERR Industry System oil mist filters focus on removing oils and contaminants from the air in the work place environment to protect the health of employees. HERR Industry System oil mist filter systems are divided into two classes, mechanical and electrostatic filtration systems. These two types are best way to deal with water-based or oil-based exhausts. For exhausts of varying oil content or composition, selecting the correct filters is important. Mechanical and electrostatic filters are suited to different concentrations and conditions of oil mist. HERR Industry System oil mist filter systems have modular designs that allow for rapid expansion, while the controlling costs at a minimum. HOFE electrostatic filter systems are recommended for higher levels of oil in the oil mist or fumes. The compared to mechanical systems higher investment costs pay for themselves due to lower maintenance costs in the shortest possible time. The power is adjustable between 4,000 – 12,000 V and therefore adaptable to the local conditions. Our service technicians are happy to help you find the right setting for your application.

    Technical specifications

    • Extraction volume: as required
    • Motor power: as required
    • Power supply: 300 – 400 V/50 Hz
    • Filter effectivity: ≥ 95 %
      Central HERR Industry System oil mist filter systems can be configured according to the requirements. Depending on the load HERR Industry System design and implement combined central systems with mechanical or electrostatic filters.
