Welding booth
Optimal protection against UV and IR radiation
HERR Industry System welding curtains, aluminum security protection screens, sound absorption systems and other protection systems are produced in accordance with the EN 1598 standard and provide optimal protection during welding with a risk factor < 1.
The curtains protect workers not only effectively UV and IR radiation but also against grinding and welding spatter.
-

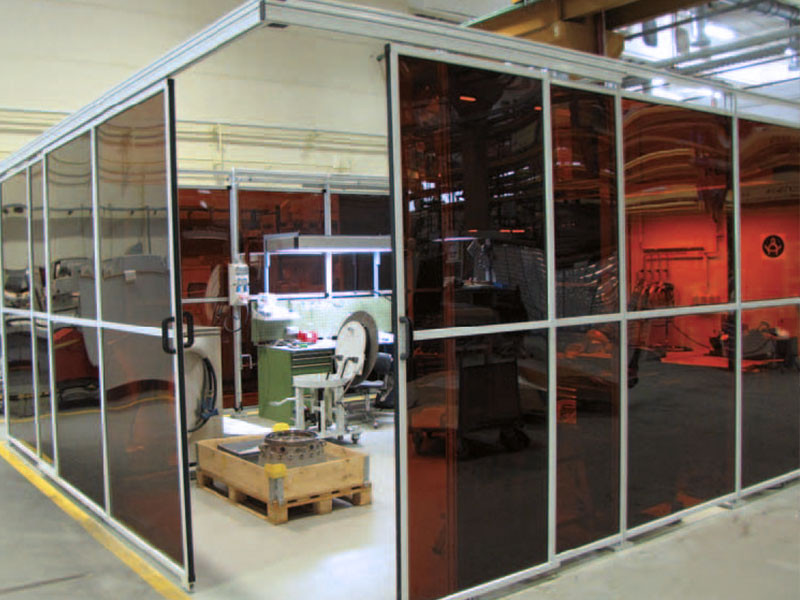

Protective window frame structures
DetailsApplication
- optimum protection against UV and IR radiation
- optimum protection against grinding and welding spatter
- Can also be used in automated welding as access protection
Technical specifications
- robust aluminum frame construction
- Design and dimensions according to requirements
- easy construction
- available as components or as complete systems: walls, doors, sliding doors
-

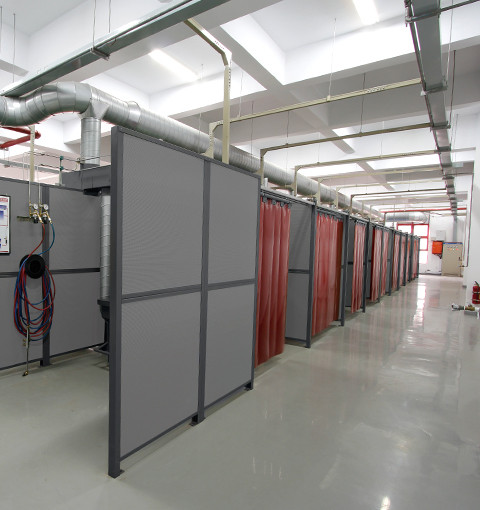

Welding protection and sound reducing booths
DetailsHERR Industry System offers a complete system consisting of:- Sound-absorbing walls
- Protective curtains and windows
- A central filter system
- Automatic Pressure Sensor/frequency converter control
- Automatically opening and closing valves and flaps
- Extraction, hoods for welding or plasma cutting
- Cutting tables, grinding tables with integrated suction
- Pipelines
The sound-absorbing walls from HERR Industry System consist of easy to build modular frame construction. They can be adapted to local conditions and flexibly expanded as required. The partition walls are also extremely stable and allow the installation of exhaust pipes on the intermediate walls. -

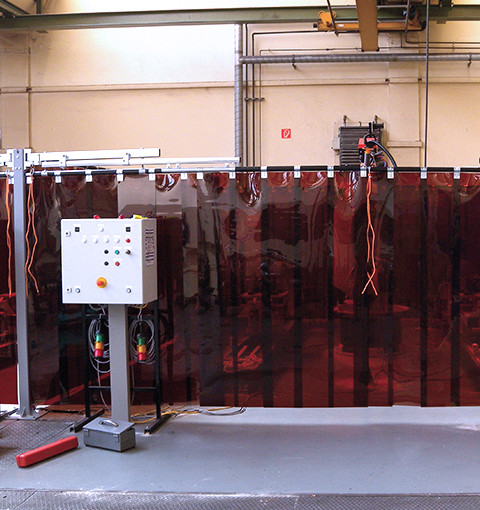

Welding curtain on telescopic rail
DetailsApplication
- optimal for crane loading
- optimum protection against UV and IR radiation
- Protection against grinding and welding spatter
Technical specifications
- Version with stripes
- according to DIN EN 1598
- Lengths from 1.5 m to 4.7 m
- Available on with swivel arm
